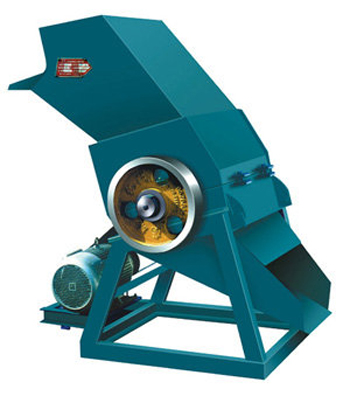

Features:
This machine is specially made of imported excellent tool steel,the cutter is very durable. Its installation is adjustable and it can be used for a very long time.
Main body of the machine is made of A3T quality structural steel.
The front and back parts of the crushing chamber are double soundproof and the intermediate is also stuffed with soundproof material,which can reduce the noise very low .
The machine is designed to be disassemble and its discharging lid,main frame and the stand of filter net are all fixed as per datum bores.So it is very easy to disassemble and clean. It is also equipped with a washing chamber and a protection brake for cutter adjustment to ensure safety while cleaning and adjusting.
It is featured in electricity-saving and excellent crushing effect. Rollers are fixed on its bottom to provide convenient moving. It is small in size and occupying less space.
Main technical parameters:
|
Model |
YDX-300 |
YDX-400 |
YDX-500 |
YDX-650 |
|
Power（KW） |
5.5 |
7.5 |
11 |
15 |
|
Crushing Chamber（MM） |
Φ220×300 |
Φ240×400 |
Φ265×500 |
Φ280×650 |
|
Effective Diameter(mm) |
650× 400 |
650× 400 |
650× 400 |
650× 400 |
|
Rotary blades |
9 |
12 |
15 |
6 |
|
Stationary blades |
2 |
2 |
4 |
4 |
|
Crushing capacity（KG/HR） |
220～300 |
400～600 |
700-850 |
650-800 |
|
Diameter of filter net（MM） |
Φ10 |
Φ10 |
Φ10 |
Φ10 |
|
Size（CM） |
110×80×120 |
130×90×170 |
140×100×165 |
165×118×175 |
|
Weight（KG） |
480 |
860 |
870 |
1100 |
|
