Usge:

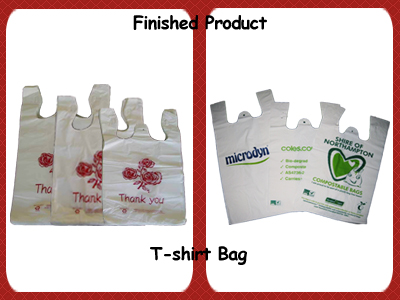

It is suitable for hot sealing and cutting both natural and color plastic film, which made of HDPE, LDPE etc. It’s one of the most ideal equipment for producing vest bag (waistcoat bag).
Specification:

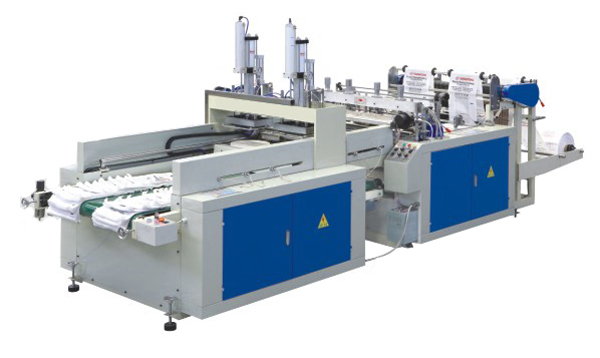

1. It’s vest bag heat cutting machine.
2. Double track design, two production lines. double photo scanners.
3. Non-stop cutting with automatic preset sorting. And continue feeding material.
4. Designed with step fixed-length system, easy operating.
5.Strong sealing and output bags being tear up neatly.
6.Punching machine use air and liquid pressurized cylinder, so the noise is low and the gas consumption is little.
7.Micro-computer control,steping motor for length-position at dicretion,staticdispel,freqency adjusting speed,auto meter counting,auto discharge,perch parking.The material channel of main machine is steel and cast iron.
Main technical parameters:
|
Model |
XD-350×2 |
XD-450×2 |
|
Max.bag-making width |
300mm x 2 |
400mmmm x 2 |
|
Max bag-making length |
650mm |
650mm |
|
Bag-making thickness |
0.015-0.035mm |
0.015-0.035mm |
|
Bag-making speed |
140-200pcs/min x 2 |
140-200pcs/min x 2 |
|
Air pressure |
5kg/cm2 |
5kg/cm2 |
|
Total power |
7kw |
9kw |
|
Weight of machine |
1400kg |
1600kg |
|
Overall dimensions(L×W×H) |
6000×1400×1600mm |
6000×1600×1600mm |
|
