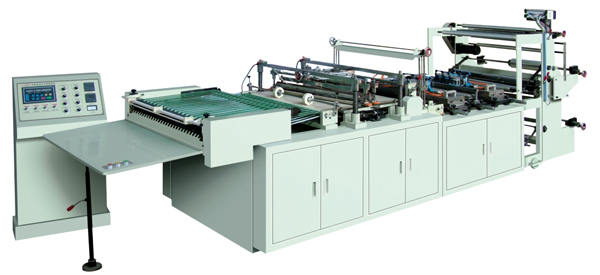

Product explanation：

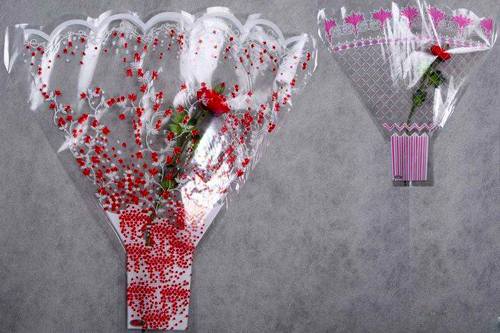

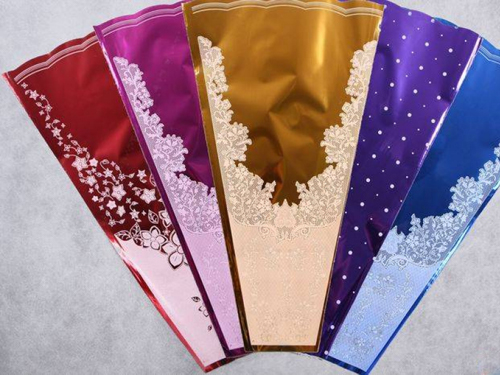

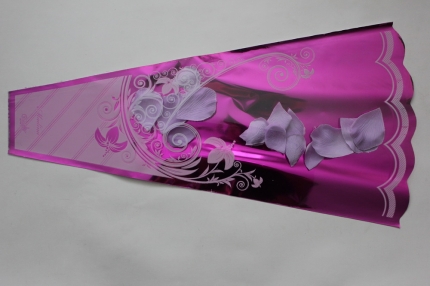

Suitable materials: BOPP, PP, PE etc which can be heated Sealing, for example: making flowers bags, tower from bag, necktie bag, bottle form bag, and fruit bag etc. kinds of bags, also can be used making common, hot cutting plastic bag.
Feature: Computer control, stepping motor material-delivery, length-making discretionarily, photoelectric correction, auto meter counting, unwinding Down and up, frequency adjusting speed, High position braking.
Main machine material: profiled bar, iron plate.
Technical parameters：
|
Model |
YRQL-500 |
YRQL-600 |
YRQL-700 |
YRQL-800 |
YRQL-900 |
|
Max. Length of bag-making, mm |
400 |
500 |
600 |
700 |
800 |
|
Max .Angle of bag-making |
55° |
55 |
55 |
55 |
55 |
|
Max. Speed of bag-making, pcs/min |
30-100 |
30-100 |
30-100 |
30-100 |
30-100 |
|
Bag-making precision, mm |
±0.5 |
 0.5
|
0.5 |
0.5 |
0.5 |
|
Electro-power, kw |
5 |
5 |
5 |
5 |
5 |
|
Complete weight, kg |
900 |
1000 |
1100 |
1200 |
1300 |
|
Overall dimension
(L×W×H),mm |
4600×1100×1400 |
4600×1200×1400 |
4600×1300×1400 |
4600×1400×1400 |
4600×1500×1400 | |
