Performance and Characteristics:

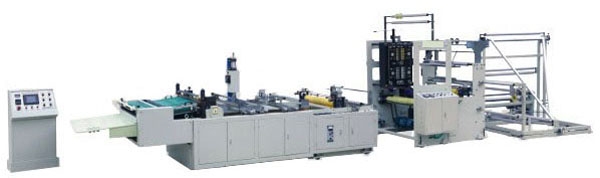

1.This machine uses fully automatic servo motor with computer digital function to control length, it is easy for operation. The produced one is very tight and fast at the seals, it apparently shows a good quality.
2.Flow process of production is from rolled material through automatic edge alignment, edge trimming, strip piercing, laminating, ultrasonic compressive embossing, photo cell sensing, hole punching, thermo cutting off and ends with automatic counting, all of the operations are fully automatic.
3.This machine equips automatic stop equipment, it will work to stop the machine when it is running out of material supply or when photo cell is out of order or when temperature is losing down and below the minimum required.

Main technical parameters：
|
Model |
XYQ-600 |
XYQ-800 |
|
Material |
LDPE-PP-PPE |
LDPE-PP-PPE |
|
Capacity |
50-150(Cycle/min) |
50-130(Cycle/min) |
|
Cutting width |
120-600mm |
150180mm |
|
Thickness of film |
0.04-0.15mm |
0.04-0.15mm |
|
Film annulus diameter |
500 x 1200mm |
500 x 160mm |
|
Step motor |
1kw |
1kw |
|
Transducer motor |
1.5kw |
2.2kw |
|
Heater |
3kw |
3.5kw |
|
Food-out motor |
0.25kw |
0.37kw |
|
Ultrasonic |
1set |
1set |
|
Conveying electrical |
0.55kw |
0.75kw |
|
Food film motor |
0.55kw |
0.75kw |
|
Sealing capacity |
10-30m/min |
10-30m/min |
|
Cooling |
0.37kw |
0.37kw |
|
Power |
15kw |
17kw |
|
Overall dimension(L×W×H)mm |
8500×1800×1800 |
8650×1900×1800 |
|
Voltage |
50Hz 220v |
50hZ 220v | |
