Specifications
Characteristics:

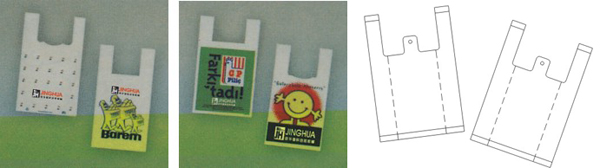

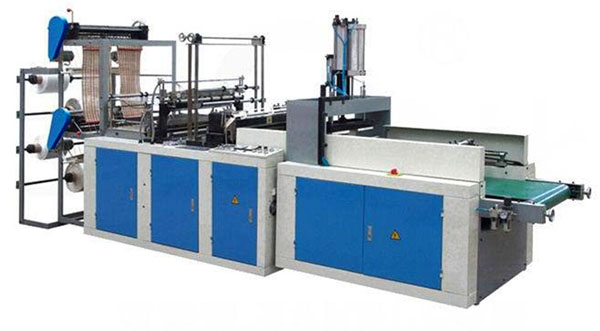

This machine is a Hot-sealing&Hot-cutting machine that is suitable for BOPP,PP,PE and composite materials, it is an ideal equipment for many kind of profiled bags such as flower bag, tower bag, and bottle-type bag, umbrella bag. The machine adopts step motor for feeding material (servo feeding), featured with photoelectric tracking for fixed length and edge correction. The main motor of machine adopts frequency control of motor speed to save more electricity and regulate speed more freely. And the back cover adopts thermo printing tool sealing and cutting by once through operation to make it even firmer.
Main Technical Parameter:
|
Model |
TZX-600 |
TZX-700 |
TZX-800 |
|
Max. width(mm) |
580 |
680 |
780 |
|
Max. length(mm) |
1200 |
1200 |
1200 |
|
Bag-making Thickness(mm) |
0.015-0.035 |
0.015-0.035 |
0.015-0.035 |
|
Speed of bag-making(pc/min) |
(60-100)x4 |
(60-100)x4 |
(60-100)x4 |
|
Power of motor(kw) |
2.2 |
3 |
3 |
|
Total power(kw) |
7 |
8 |
9 |
|
Machine weight(kg) |
1300 |
1400 |
1500 |
|
Outline dimension(LxWxH)(mm) |
6000x1200x1700 |
6000x1300x1850 |
6000x1500x1900 |
|
