Specifications
Characteristics:

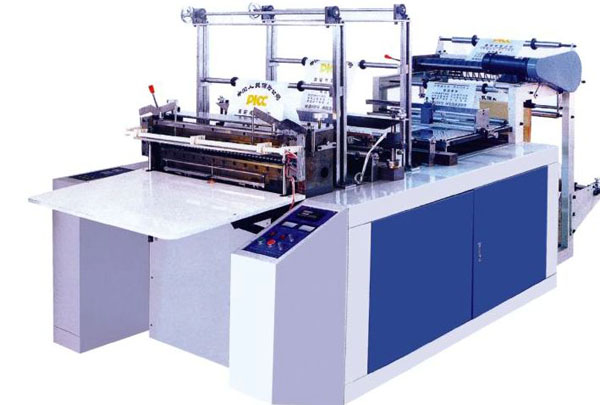

System, a printed vest bags, flat bags; main motor adopts frequency conversion motor, gives you more power, speed and more comfortable. Good performance of the color tracker, make the cutting length is more accurate, the error is smaller. The use of advanced computer is easy to adjust the length and precise.
Main Technical Parameter:
|
Model |
YQL-500 |
YQL-600 |
YQL-800 |
YQL-1000 |
YQL-1200 |
|
Max. width (mm) |
450 |
550 |
750 |
950 |
1150 |
|
Max. length (mm) |
950 |
950 |
950 |
1200 |
2000 |
|
Speed (pc/min) |
30-130 |
30-130 |
30-120 |
30-100 |
30-80 |
|
Power of motor (KW) |
0,75 |
0,75 |
1,5 |
2,2 |
3 |
|
Machine weight (kg) |
650 |
750 |
800 |
900 |
1000 |
|
Outline dimension (LxWxH) (mm) |
2900х1200х1550 |
2900х1350х1650 |
2900х1450х1550 |
3200х1550х1750 |
3400х1750х1850 |
|
