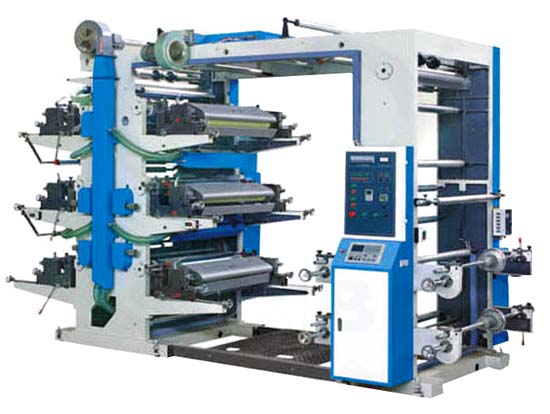

Six-Colour Flexographic Printing Machine




Use:
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Characteristics:

1.      Easy operation, flexible starting accurate color register.

2. The meter counter can set printing quantity according to the requirement. Stop the machine automatically at the set quantity or when the material is cut off.
3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting
4.The printing ink is spread by the knurled cylinders with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6 .360-degree continuously adjusted longitudinal devices.
7. The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Main technical parameters:

Model of Machine

YT-6600

YT-6800

YT-61000

Max. Width of Printing Material

600mm

800mm

1000mm

Max. Printing With

560mm

760mm

960mm

Length Range of Printed Product

191-914mm

191-914mm

191-914mm

Max. Diameter of Roll Material

φ450mm

φ450mm

φ450mm

Printing Speed

5~50m/min

5~50m/min

5~50m/min

Thickness of plate(Including Two-sides Glue Paper)

2.38mm

2.38mm

2.38mm

Total Power

13kw

15kw

18kw

Weight of Machine

3500kg

4200kg

5000kg

Overall Dimensions

3900×1660×2950mm

3900×1860×2950mm

3900×2060×2950mm
