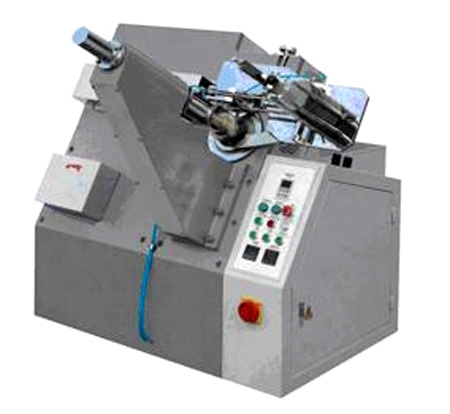

This machine is designed to satisfy the marketing demand for cake plate forming machines with compact size, high production capacity, stable performance and simple operation. It is equipped with manipulator clipper pneumatic. Thus, it can automatically finish a series production process of feeding paper, separating paper, punching and discharging, etc. Additionally, by changing the moulds, the cake plate making machine can both be used for producing paper cake plates and aluminum cake plates, etc.
Main Technical Parameter:
|
Type |
LC-EGTJ |
|
Paper |
Anti-oil paper, aluminum foil paper |
|
Paper size |
15-120g/m2 |
|
Capacity |
20-35 times/min 10-20 pcs/time |
|
Motor power |
1.5 kw |
|
Power source |
220V 60HZ |
|
Air source |
working pressure 0.4MPa
air volume 0.2-0.3m3/min |
|
Weight |
600 kg |
|
Overall Dimension |
1700х1400х1600 mm |
|
