Specifications:

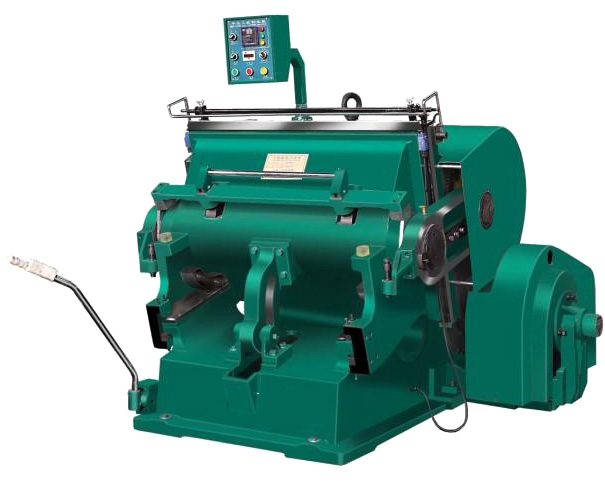

The die cutting and creasing machines is special equipments of die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing, packaging, decoration and plastic industries machines have been acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
Features:
1. Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-fraction and shake reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to one piece casting by using top-ranking material for machine body.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. With functions of single, continuous and opening wheel operation, dwell range is adjustable.
6. Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7. Safety system is reliable.
Main Technical Parameter:
|
Type |
HY-1000 |
|
Inner Chase Size |
930 – 670 mm |
|
Speed |
23 Strokes/Min |
|
Power |
4 kw |
|
Power source |
220/380 v |
|
Weight |
3500 kg |
|
Overall Dimension |
1820х1600х1700 mm |
|
