Features:
1.Special
PE screw & barrel is good for fast charging speed and mixed color effect.
2. Upgraded hydraulic system can improve the injection and charging speed.
3. Improved frame structure is more suitable for Paint Bucket making
requirements.
4. The product can automatically drop out from the customized slider that
improves the production efficiency.
Note
．Theory injection capacity = screw
diameter2×π/4×screw travel
．Actual
injection capacity is the maximal weight of polystyrene (PS) raw material
injected to air.
．When
UPVC, PC, PMMA, PA and other engineering plastic material are used, please let
us know. When you need modifying parameters and functions of the machine,
please let us know also.
．According
to demand of machine upgrade, we will change technical parameters,
configuration of some parts and service’s items without prior notice.

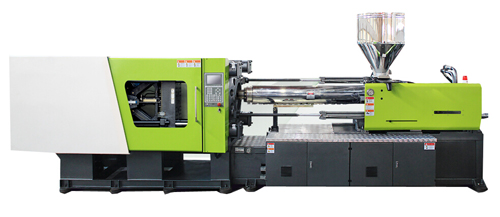

．Photos
are for reference only. If there is any difference with actual products
purchased, the real products are final.
．In
normal condition six months warrantee for barrel & screw; but using caustic
or any recycling material is not guaranteed.
Parameter:
|
Type
|
HD5000-5410
|
|
CLAMPING UNIT
|
|
|
Clamping
force, KN
|
5000
|
|
Opening
Stroke, mm
|
830
|
|
Max. daylight,
mm
|
1680
|
|
Platen Size,
mm*mm
|
1260*1260
|
|
Space between
bars, mm*mm
|
820*820
|
|
Max. mold
height, mm
|
850
|
|
Min. mold
height, mm
|
300
|
|
Ejector
stroke, mm
|
220
|
|
Ejector force, KN
|
135
|
|
INJECTION UNIT
|
|
|
Screw
diameter, mm
|
95
|
|
Screw L/D
ratio,
|
23
|
|
Injection
Pressure, Mpa
|
170
|
|
Shot volume,
cm3
|
3189
|
|
Shot weight
(ps), g/OZ
|
2998/105.7
|
|
Injection
rate, g/sec
|
725
|
|
Screw stroke,
mm
|
450
|
|
Screw speed,
rpm
|
168
|
|
POWER UNIT
|
|
|
Hydraulic
system pressure, Mpa
|
17.5
|
|
Pump motor
power, kw
|
32.7+41
|
|
Heater power,
kw
|
38
|
|
GENERAL
|
|
|
Oil tank
capacity, L
|
1000
|
|
Machine
weight, kg
|
20.5
|
|
Dimension (L*W*H)
|
9.1*2.1*2.2
|
|
