Features：
The
wall of the PP product is even, with the transparency nearly the same as PC and
PET bottles. PET bottle has the disadvantage of not standing the high
temperature, and PC bottle contains bisphenol A. But the PP product can cover
both of the above shortcomings. It is suitable for
．transparent
medical dropping bottle and hot-filling bottle.
．sport
drinking water bottle
．feeding
bottle for baby
．Five
pivots toggle mould clamping is featured with big clamping force and stable
performance.
．Combined
heating and blowing in one machine, it is safe to operate, stable and high
-efficient without skillful worker.
．High-speed
PLC is adopted from OMRON, with multi-language HMI, easy for operation, stable
in technical parameter.
．The
pneumatic circuit system is adopted from AIRTEC (Germany) & SMC
(Japan), precise, stable and longer in service life.
．With
the multiple stage design and the use of special lamps for PP heating, it has a
good transmissivity, makes sure even heating, high efficiency and suitable for
different height of PP preform. The bottle neck cooling protection keeps its
shape.
．Close-loop
heating control system with corresponsive high accurate digital display and
controlled by PLC, makes sure stable heating energy saving and not to be
affected by fluctuated voltage.
．Imported
servo system is adapted to the conveying of the preform. It provides quick
response, stable operation, and no shaking; Replaceable heating base heads make
the operation and maintenance in low cost.
．Turn
key project is offered for the PP preform design & production, and bottle
blowing.
Technical
Parameter:
|
Specification
|
HDSBL70S-IPP
|
HDSBL70S-IIPP
|
HDSBL70S-IIIPP
|
|
Clamping
Force, KN
|
70
|
70
|
70
|
|
Mold Height,
mm
|
180-220
|
180-220
|
220-260
|
|
Mold Open
Stroke, mm
|
122
|
150
|
150
|
|
Bottle Capacity,
ml
|
1000
|
1500
|
2000
|
|
Reference
Output, BPH
|
600
|
600
|
500
|
|
Stretch Bar
Stroke, mm
|
320
|
320
|
360
|
|
Max. Bottle
Neck, mm
|
70
|
90
|
90
|
|
Max. Diameter
of Bottle, mm
|
90
|
110
|
110
|
|
Max. Height of
Bottle, mm
|
245
|
245
|
245
|
|
Mold Cavities/
Central Distance, c/mm
|
1/-
|
1/-
|
1/-
|
|
Power Rating,
KW
|
60
|
60
|
60
|
|
Power
Consumption, KW
|
＜22
|
＜25
|
＜25
|
|
Operation
Pressure/Consumption, MPA/m3/min
|
0.8/1.5
|
0.8/1.5
|
0.8/1.5
|
|
High
Pressure/Consumption Mpa/m3/min
|
3.0/1.5
|
3.0/2.0
|
3.0/2.0
|
|
Machine
Dimension (L*W*H), mm
|
3630*1350*1900
|
3630*1350*1900
|
4780*1350*1900
|
|
Machine
weight, kg
|
1700
|
1800
|
1800
|
Remarks:
According to upgrading of machine, we will change technical parameters,
configuration of some parts and service’s items without further notice

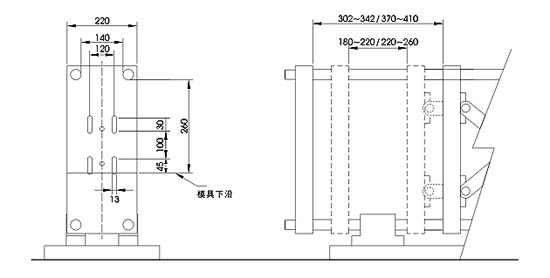

Mold platen size：
|
