Features：
．Toggle
mould clamping mechanism guarantees big clamping force, no expansion of mould,
no increase of high pressure air consumption.
．High-performance
chain driven by servo motor ensures stable, fast and accurate operation.
．High-pressure
cylinder sealing and independent controlled stretch bar guarantees reliable
sealing and accurate stretching.
．Automatic
perform handling equipment and robots for perform loading & take-out make
production process fully automatic.
．Latest
high speed PLC and Chinese-English HMI are adopted. The time setting can be
accurate in 0.01 second. It makes the operation more easy and the technical
setting more accurate.
．High
quality pneumatic parts are imported from Europe or Japan. Fast feedback solenoid
valve (from Germany) is adopted in high-pressure blowing. It ensures the second
blow time accurate and controllable.
．IR
lamp which is most efficient for PET heating, is fully considered for lower
power consumption and higher production efficiency.
Technical
Parameter：
|
Specification
|
HDSBL480-4
|
HDSBL480-6
|
|
Clamping
Force, KN
|
480
|
480
|
|
Mold Open
Stroke, mm
|
150
|
150
|
|
Bottle
Capacity, ml
|
2000
|
600
|
|
Reference
Output, BPH
|
4000
|
6000
|
|
Stretch Bar
Stroke, mm
|
410
|
410
|
|
Max. Bottle
Neck, mm
|
38
|
38
|
|
Max. Diameter
of Bottle, mm
|
100
|
70
|
|
Max Height of
Bottle, mm
|
320
|
240
|
|
Mold
Cavities/Central Distance, c/mm
|
4/114.3
|
6/76.2
|
|
Power Rating,
KW
|
75
|
60
|
|
Power
Consumption, KW
|
＜38
|
＜30
|
|
Operation
Pressure/Consumption, Mpa/m3/min
|
0.8/3.0
|
0.8/3.0
|
|
High
Pressure/Consumption, Mpa/m3/min
|
3.0/2.5
|
3.0/2.5
|
|
Machine
Dimension (L*w*H)
|
3800*1700*2000
|
3800*1700*2000
|
|
Machine
Weight, kg
|
4000
|
4300
|

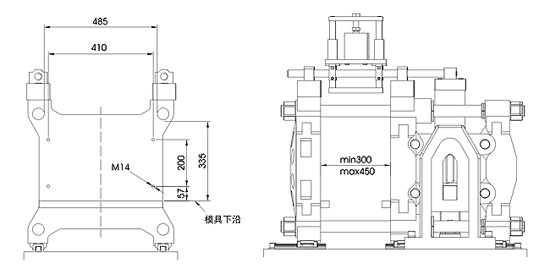

Mold platen size：
|
