Features：
．Toggle
mould locking mechanism guarantees big clamping force, no expansion of mould,
no increase of high pressure air consumption.
．Sliding
transferring guarantees stable, fast and accurate operation.
．Self-locked
high pressure sealing makes stable sealing, no impact, and no wearing. Independent
controlled stretch bar provides accurate stretching.
．Automatic
preform handling equipment and robots for perform loading & take-out make
production process fully automatic.
．Latest
high speed PLC and Chinese-English HMI are adopted. The time setting can be
accurate in 0.01 second. It makes the operation more easy and the technical
setting more accurate.
．High
quality pneumatic parts are imported from Europe or Japan. Fast feedback
solenoid valve (from Germany) is adopted in high-pressure blowing. It ensures
the second blow time accurate and controllable.
．Centralized
heating makes even, stable effect, and reduces power consumption mostly.
．IR
lamp which is most efficient for PET heating, is fully considered for lower
power consumption and higher production efficiency.
Technical
Parameter
|
Specification
|
HDSBS480-2W
|
HDSBS480-2L
|
|
Clamping
Force, KN
|
480
|
480
|
|
Mold Open
Stroke, mm
|
250
|
250
|
|
Bottle
Capacity, ml
|
7000
|
7000
|
|
Reference
Output, BPH
|
1100
|
1300
|
|
Reference
Output, BPH
|
400
|
400
|
|
Max. Bottle
Neck, mm
|
120
|
45
|
|
Max. Diameter
of Bottle, mm
|
200
|
200
|
|
Max. Height of
Bottle, mm
|
300
|
320
|
|
Mold
Cavities/Central Distance, c/mm
|
2/220
|
2/220
|
|
Power Rating,
KW
|
55
|
67
|
|
Power Consumption.
KW
|
＜28
|
＜34
|
|
Operation
Pressure/Consumption, Mpa/m3/min
|
0.8/3.0
|
0.8/3.0
|
|
High
Pressure/Consumption, Mpa/m3/min
|
3.0/3.5
|
3.0/3.5
|
|
Machine
Dimension (L*W*H), mm
|
3100*2000*2000
|
3100*2000*2000
|
|
Machine
Weight, KG
|
4000
|
4000
|

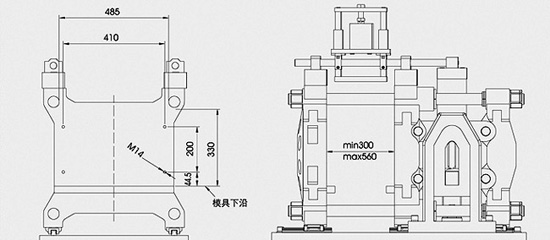

Mold platen size：
|
