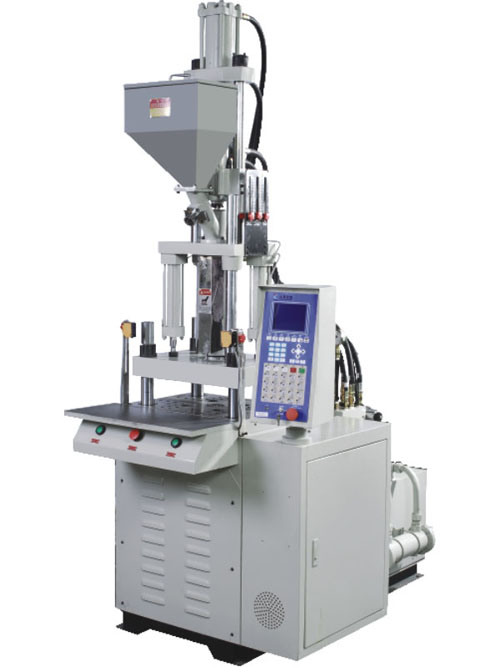

Characteristics:
Vertical
clamping, vertical injection, safe and prevent mould from weigh, it fits for
inserts plastic molding.
PARAMETER:
|
Type
|
HDTY-120
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
28, Ф32
|
|
Injection
Pressure, Kg/cm2
|
1446, 1107
|
|
Theoretical
Shot volume, cm3
|
65, 84
|
|
Max. Shot
Weight, g/Oz
|
58/2.0, 75/2.6
|
|
Injection
Rate, cm3/sec
|
40.3, 52.7
|
|
Temperature
Control, ZONE
|
3
|
|
Material
Hopper Capacity, L
|
15
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
25
|
|
Opening Force,
T
|
6.6
|
|
Mold
dimensions, mm
|
360×230
|
|
Min Mold
Height, mm
|
100
|
|
Opening
Stroke, mm
|
180
|
|
Max. Open
Daylight, mm
|
280
|
|
Ejector Force,
T
|
1.3
|
|
Ejector stoke,
mm
|
40
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
130
|
|
Pump Motor
Power, kw
|
4
|
|
Barrel Heating
Power, kw
|
2.7
|
|
Total Wattage,
kw
|
6.7
|
|
General
|
|
|
Machine
Weight, t
|
0.96
|
|
Machine
Dimensions(L*W*H), m
|
1.5*0.8*2.6
|

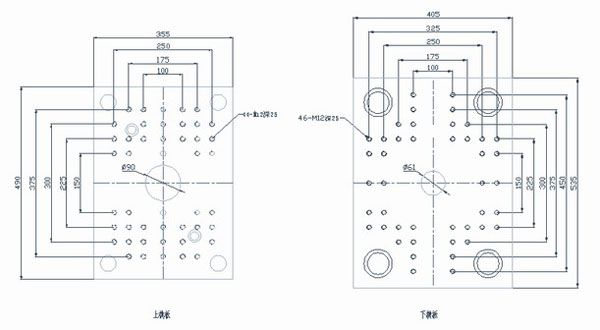

TEMPLATE:
|
