Characteristics
Vertical
four column clamping, vertical injection, ease to put and take out
inserts.
Single slide design, item put and take out of the work area, which shares ease
operate, high safety character.

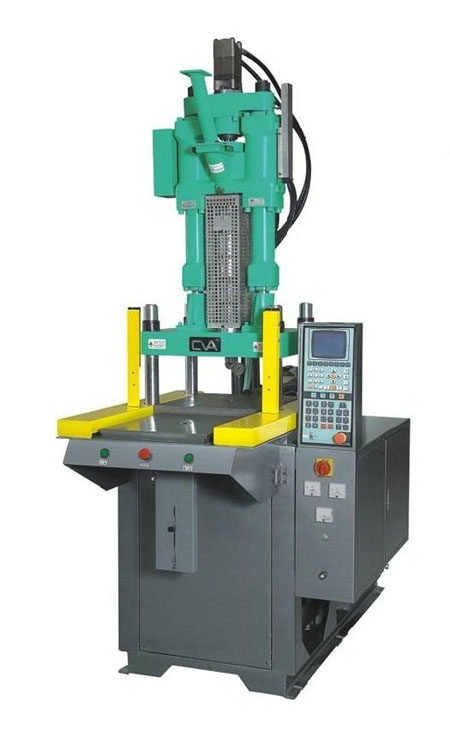

Four column single slide table machine (1 upper mould, 1 bottom mould)
PARAMETER:
|
Type
|
HDTY-120S
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
Ф28, Ф32
|
|
Injection
Pressure, Kg/cm2
|
1446, 1107
|
|
Theoretical
Shot volume, cm3
|
65, 84
|
|
Max. Shot
Weight, g/Oz
|
58/2.0, 75/2.6
|
|
Injection
Rate, cm3/sec
|
40.3, 52.7
|
|
Temperature
Control, ZONE
|
3
|
|
Material
Hopper Capacity, L
|
15
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
25
|
|
Opening Force,
T
|
6.6
|
|
Mold
dimensions, mm
|
360*230
|
|
Min Mold
Height, mm
|
150
|
|
Opening
Stroke, mm
|
180
|
|
Max. Open
Daylight, mm
|
280
|
|
Ejector Force,
T
|
1.3
|
|
Ejector stoke,
mm
|
40
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
130
|
|
Pump Motor
Power, kw
|
4
|
|
Barrel Heating
Power, kw
|
2.7
|
|
Total Wattage,
kw
|
6.7
|
|
General
|
|
|
Machine
Weight, t
|
1.25
|
|
Machine
Dimensions(L*W*H), m
|
1.8*0.9*2.7
|
|
Slide Plater
Stoke, mm
|
350
|

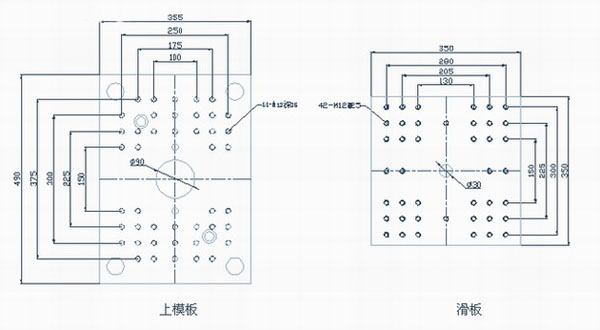

TEMPLATE:
