Characteristics

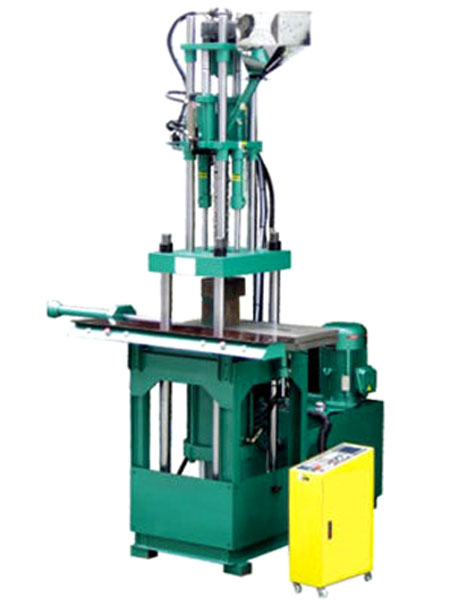

Vertical
clamping, vertical injection, safe and prevent mould from weigh, it fits for
inserts plastic molding.
Parameter:
|
Type
|
HDTY1200S
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
36
|
|
Injection
Pressure, Kg/cm2
|
3581
|
|
Theoretical
Shot volume, cm3
|
224
|
|
Max. Shot
Weight, g/Oz
|
204/7.18
|
|
Injection
Rate, cm3/sec
|
75
|
|
Temperature
Control, ZONE
|
4
|
|
Material
Hopper Capacity, L
|
30
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
120
|
|
Opening Force,
T
|
16
|
|
Mold
dimensions, mm
|
600*400
|
|
Min Mold
Height, mm
|
250
|
|
Opening
Stroke, mm
|
400
|
|
Max. Open
Daylight, mm
|
650
|
|
Ejector Force,
T
|
4.6
|
|
Ejector stoke,
mm
|
75
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
480
|
|
Pump Motor
Power, KW
|
15
|
|
Barrel Heating
Power, KW
|
10.4
|
|
Total Wattage,
KW
|
25.4
|
|
GENRAL
|
|
|
Machine
Weight, t
|
6.7
|
|
Machine
Dimensions(L*W*H), m
|
2.5*1.2*3.7
|
|
