Characteristics
1. Advantages:

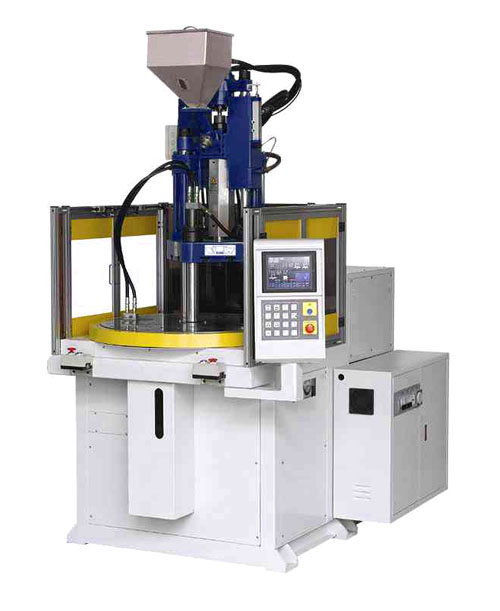

this machine structure for structure of vertical injection molding machine for
vertical mode locking, vertical injection molding machine, compact structure,
small floor space, using direct pressure mode locking structure, high precision
of molding locking, long service life. “2R” is the two station rotary table, an
upper die, a lower die and two are in the same plane rotated 360 degrees, the
turn table type operation with fixed position, can save the artificial, improve
work efficiency of 50%-100%
2. Advanced
control system using AK666 M8M: Taiwan HONGXUN computer control, 8 inch color
display screen, CPU operation speed, the action fast conversion speed, smooth
transition.
3. Injection
system excellent plasticizing effect: double metal screw barrel TEJIA: molding
products of high density, good surface smoothness, and beautiful appearance.
4. Security:
machine with three surfaces protects the work surface configuration Taiwan
YANGMING grating, the overall safety is reliable.
Parameter
|
Type
|
HDTY850-2R.CE
|
|
INJECTION UNIT
|
|
|
Screw Diameter,
mm
|
22
|
|
Injection
Pressure, Kg/cm2
|
2343
|
|
Theoretical
Shot volume, cm3
|
40
|
|
Max. Shot
Weight, g/Oz
|
35.6/1.26
|
|
Injection
Rate, cm3/sec
|
75.7
|
|
Temperature
Control, ZONE
|
3
|
|
Material
Hopper Capacity, L
|
15
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
85
|
|
Opening Force,
T
|
13.5
|
|
Min Mold
Height, mm
|
200
|
|
Opening
Stroke, mm
|
250
|
|
Max. Open
Daylight, mm
|
450
|
|
Ejector Force,
T
|
2.7
|
|
Ejector stoke,
mm
|
50
|
|
SLIDING
MODE UNIT
|
|
|
Round Set Diameter, mm
|
Ф1200
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
210
|
|
Pump Motor
Power, kw
|
11
|
|
Barrel Heating
Power, kw
|
4.1
|
|
Total Wattage,
kw
|
15.1
|
|
General
|
|
|
Machine Weight, T
|
3.8
|
|
Machine
Dimensions(L×W×H), m
|
3.6x2.0x4.1
|
|
