Characteristics
TYU

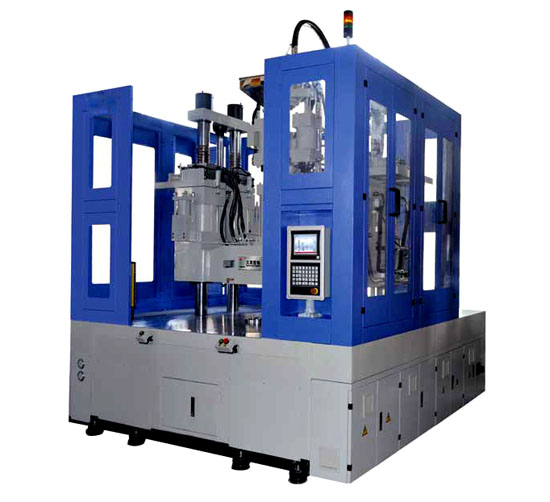

linkage locking vertical injection molding machine is HENGDA relying on its own
strong technical strength, high precision vertical injection molding machine
independent research and development. Linkage tapping mode locking of vertical
injection molding machine, effectively solves the problem of large tonnage full
height of vertical injection molding machine, then the customer doesn’t have to
worry about building height restriction.
Safety:
as the structure using two templates, rod no longer active plate guide rod with
a total length of pull rod, to reduce the mechanical equipment, greatly reduces
the height, so that employees work more convenient, safety.
Control
system: adopts Taiwan HONGXUN high performance control system convenient,
operation, good stability.
Oil
system: through 3D dynamic simulation, flow, can effectively reduce the power
loss, faster.
The
mechanical structure: locking closing force line of short, only the template and
the template of the distance, locking steel is good, high precision; mobile
template using oil-free self-lubricating copper sleeve guide, ensure clean
production environment, thereby greatly improving the locking component of
steel and die life.
Mechanical
parts: production using the international advanced technology, key parts such
as electric, hydraulic and seal all imported parts, the machine stable
performance, long service life.
Parameter:
|
Type
|
HDTYU2100-2R
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
36
|
|
Injection
Pressure, Kg/cm2
|
1723
|
|
Theoretical
Shot volume, cm3
|
183
|
|
Max. Shot
Weight, g/Oz
|
163.4/8.6
|
|
Injection
Rate, cm3/sec
|
87
|
|
Temperature
Control, ZONE
|
4
|
|
Material
Hopper Capacity, L
|
30
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
210
|
|
Opening Force,
T
|
20
|
|
Min Mold
Height, mm
|
350
|
|
Opening
Stroke, mm
|
400
|
|
Max. Open
Daylight, mm
|
750
|
|
Round Set Diameter, mm
|
1800
|
|
Ejector Force,
T
|
6.2
|
|
Ejector stoke,
mm
|
75
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
535
|
|
Pump Motor
Power, kw
|
18.5
|
|
Barrel Heating
Power, kw
|
4.5
|
|
Total Wattage,
kw
|
23
|
|
