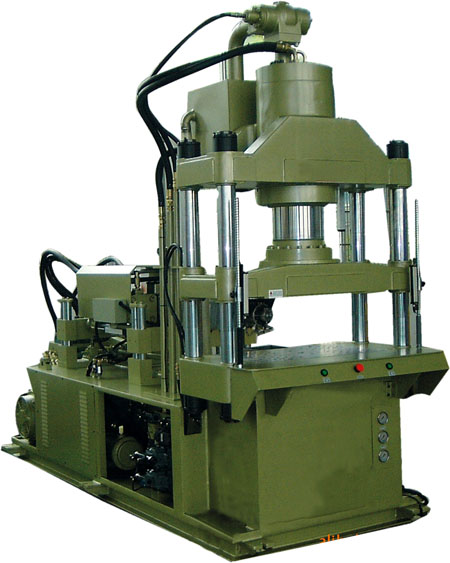

Characteristics
1. The
structure is a vertical mould, vertical injection, compact structure, small
floor space. Using four cylinder linkage locking mechanism, four rod force
uniform, not by the ordinary type rod length error and lead to the occurrence
of the problem of single uneven stress, fatigue and fracture etc.
2. The
work table is low (900mm-1000mm), without increasing the platform, for the
replacement of the mold, the product fetching, auxiliary equipment
installation, staff operation are very convenient.
3. The space capacity of mold and strong
applicability. Can fully meet your blood and take needle product mould
production requirements.
4. Die
stroke is fixed, the main oil cylinder is adjustable die, die debugging
convenient.
5. A
turntable driven by servo motor with high performance, high precision hydraulic
and mechanical positioning system, improve the rotary speed while.
6. The
allocation of dual electronic scale, open die, injection, feeding motion stroke
control precision, accuracy reach mm, can be set in the computer, to achieve
the advantages of the standard management etc.
Parameter:
|
Type
|
HDTYU2500
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
46
|
|
Injection
Pressure, Kg/cm2
|
2193
|
|
Theoretical
Shot volume, cm3
|
365
|
|
Max. Shot
Weight, g/Oz
|
325/14.6
|
|
Injection
Rate, cm3/sec
|
144
|
|
Temperature
Control, ZONE
|
4
|
|
Material
Hopper Capacity, L
|
30
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
250
|
|
Opening Force,
T
|
20
|
|
Min Mold
Height, mm
|
350
|
|
Opening
Stroke, mm
|
400
|
|
Max. Open
Daylight, mm
|
750
|
|
Ejector Force,
T
|
6.5
|
|
Ejector stoke,
mm
|
100
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
600
|
|
Pump Motor
Power, kw
|
30
|
|
Barrel Heating
Power, kw
|
10.5
|
|
Total Wattage,
kw
|
40.5
|
|
GENERAL
|
|
|
Machine Weight, T
|
11
|
|
Machine Dimensions(L*W*H), m
|
3.6*1.6*4.1
|
|
