Characteristics
Vertical
clamping, horizontal injection, it ease to put and take out items. No column,
three sides open, tending to produce long plastic products.
Single slide design, item put and take out of the work area, which shares ease
operate, high safety character.

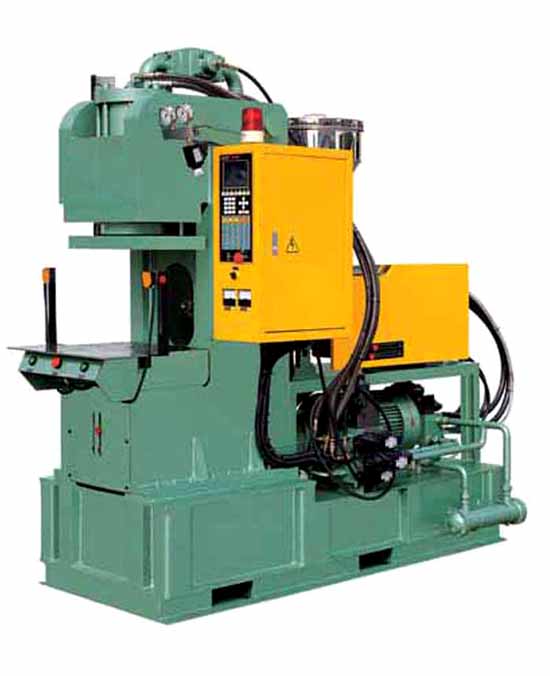

Four column single slide table machine (1 upper mould, 1 bottom mould)
Parameter
|
Type
|
HDTC-450DS
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
32, 36, 45
|
|
Injection
Pressure, Kg/cm2
|
1531, 1210, 1050
|
|
Theoretical
Shot volume, cm3
|
104, 132, 206
|
|
Max. Shot
Weight, g/Oz
|
93/3.3, 118/4.2, 183/6.5
|
|
Injection
Rate, cm3/sec
|
72, 91, 143
|
|
Temperature
Control, ZONE
|
4
|
|
Material
Hopper Capacity, L
|
30
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
45
|
|
Opening Force,
T
|
8.3
|
|
Mold dimensions, mm
|
175
|
|
Min Mold
Height, mm
|
200
|
|
Opening
Stroke, mm
|
375
|
|
Max. Open
Daylight, mm
|
150±20
|
|
Ejector Force,
T
|
1.8
|
|
Ejector stoke,
mm
|
90
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
180
|
|
Pump Motor
Power, kw
|
7.5
|
|
Barrel Heating
Power, kw
|
6.35
|
|
Total Wattage,
kw
|
13.85
|
|
GENERAL
|
|
|
Slide table stroke, mm
|
450
|
|
Machine Weight, T
|
3.2
|
|
Machine Dimensions(L*W*H), m
|
2.2*1.6*2.2
|

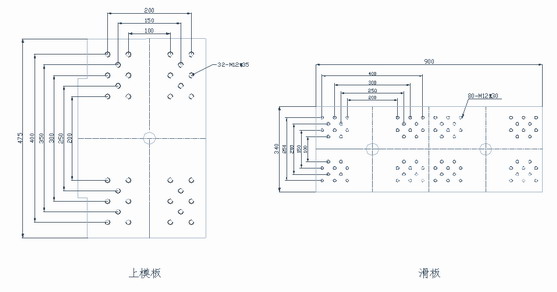

Template
|
