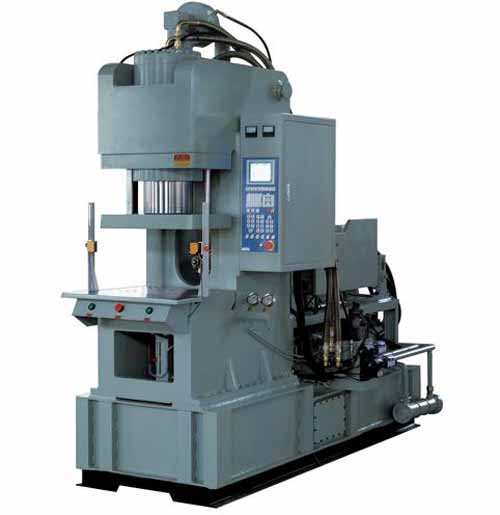

Characteristics
Vertical
clamping, horizontal injection, it ease to put and take out items. No column,
three sides open, tending to produce long plastic products.
Parameter
|
Type
|
HDTC-450
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
32, 36, 45
|
|
Injection
Pressure, Kg/cm2
|
1531, 1210, 1050
|
|
Theoretical
Shot volume, cm3
|
104, 132, 206
|
|
Max. Shot
Weight, g/Oz
|
93/3.3, 118/4.2, 183/6.5
|
|
Injection
Rate, cm3/sec
|
72, 91, 143
|
|
Temperature
Control, ZONE
|
4
|
|
Material
Hopper Capacity, L
|
30
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
45
|
|
Opening Force,
T
|
8.3
|
|
Mold dimensions, mm
|
175
|
|
Min Mold
Height, mm
|
200
|
|
Opening
Stroke, mm
|
375
|
|
Max. Open
Daylight, mm
|
150±20
|
|
Ejector Force,
T
|
1.8
|
|
Ejector stoke,
mm
|
90
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
180
|
|
Pump Motor
Power, kw
|
7.5
|
|
Barrel Heating
Power, kw
|
6.35
|
|
Total Wattage,
kw
|
13.85
|
|
GENERAL
|
|
|
Machine Weight, T
|
3.2
|
|
Machine Dimensions(L*W*H), m
|
2.2*0.8*2.1
|

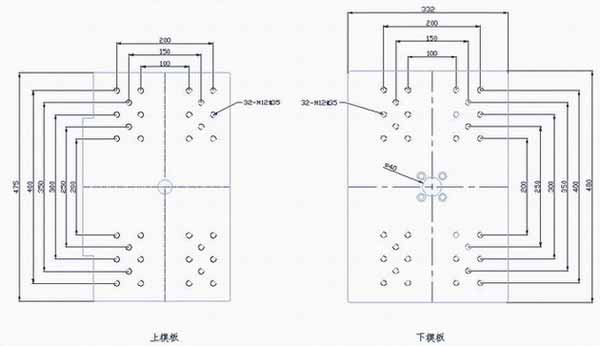

Template
|
