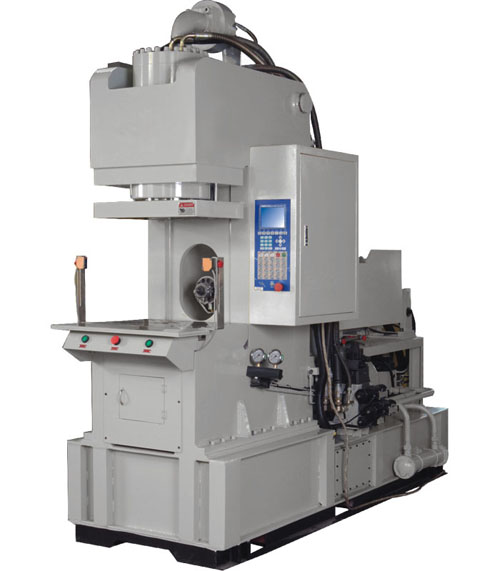

Characteristics
Vertical
clamping, horizontal injection, it ease to put and take out items. No column,

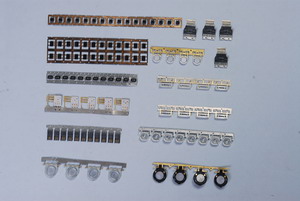

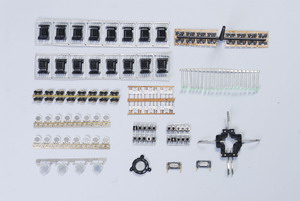

three sides open, tending to produce long plastic products.
Parameter
|
Type
|
HDTC-750
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
36, 40, 45
|
|
Injection
Pressure, Kg/cm2
|
1620, 1313,
1037
|
|
Theoretical
Shot volume, cm3
|
162, 200, 254
|
|
Max. Shot
Weight, g/Oz
|
146/5.3,
178/6.3, 233/8.2
|
|
Injection
Rate, cm3/sec
|
94, 116, 168
|
|
Temperature
Control, ZONE
|
4
|
|
Material
Hopper Capacity, L
|
60
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
75
|
|
Opening Force,
T
|
11.5
|
|
Mold
dimensions, mm
|
200
|
|
Min Mold
Height, mm
|
270
|
|
Opening
Stroke, mm
|
470
|
|
Max. Open
Daylight, mm
|
170±20
|
|
Ejector Force,
T
|
2.7
|
|
Ejector stoke,
mm
|
90
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
280
|
|
Pump Motor
Power, kw
|
11
|
|
Barrel Heating
Power, kw
|
10.45
|
|
Total Wattage,
kw
|
21.45
|
|
GENERAL
|
|
|
Machine
Weight, T
|
4.8
|
|
Machine
Dimensions(L*W*H), m
|
2.6*0.9*2.6
|

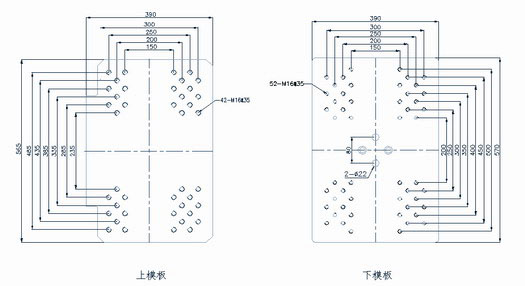

Template
|
