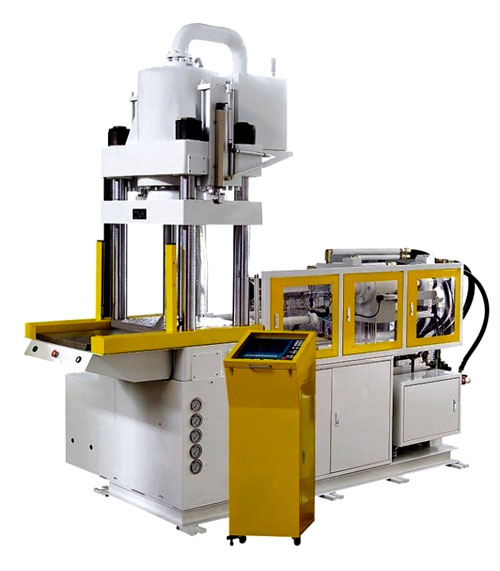

Characteristics
Vertical
clamping, horizontal injection, it ease to put and take out items. No column,
three sides open, tending to produce long plastic products.
Multi station rotary table design, share the merit of rotate steady,
positioning accurate, operate safe.
TY-R multi station rotary table machine, （1 upper mould, 2
to 4 bottom mould）safe and time saving, increase production efficiency
up to 50% to 80%.
Parameter
|
Type
|
HDTC-850.3R
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
36, 40, 45
|
|
Injection
Pressure, Kg/cm2
|
1620, 1313, 1037
|
|
Theoretical
Shot volume, cm3
|
162, 200, 254
|
|
Max. Shot
Weight, g/Oz
|
146/5.3, 178/6.3, 233/8.2
|
|
Injection
Rate, cm3/sec
|
94, 116, 168
|
|
Temperature
Control, ZONE
|
4
|
|
Material
Hopper Capacity, L
|
60
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
85
|
|
Opening Force,
T
|
17
|
|
Mold dimensions, mm
|
200
|
|
Min Mold
Height, mm
|
270
|
|
Opening
Stroke, mm
|
470
|
|
Max. Open
Daylight, mm
|
170±20
|
|
Ejector Force,
T
|
2.7
|
|
Ejector stoke,
mm
|
90
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
280
|
|
Pump Motor
Power, kw
|
11
|
|
Barrel Heating
Power, kw
|
10.45
|
|
Total Wattage,
kw
|
21.45
|
|
GENERAL
|
|
|
Machine Weight, T
|
4.8
|
|
Machine Dimensions(L*W*H), m
|
3.5*1.2*3.0
|
|
Round set diameter, mm
|
Ф920
|

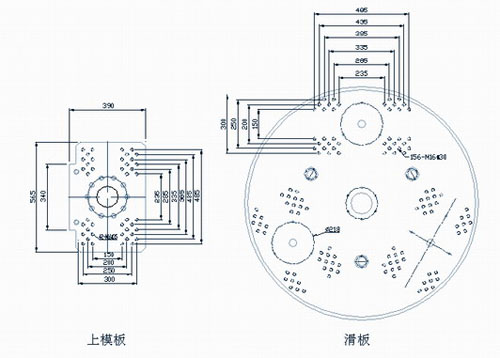

Template
|
