Characteristics
This
series special injection molding prefabricated branch cable machine is the
domestic authority of Electric Cable Research Institute jointly developed the
development of a dedicated branch cable joint package plastic injection molding
machine.
The
machine has the characteristics of high efficiency, stable performance and
convenient operation etc, It has been popularized to be used in pre branching
cable industry.]
This
special injection molding pre branching cable machine structure for vertical
and horizontal injection locking, column free, open on three sides(for cable
pick and place), clamping control, screen display, double proportional pressure
and flow control, the machine structure is strong, high pressure and fast
speed.
Parameter
|
Type
|
HDTC-1200DL
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
70
|
|
Injection
Pressure, Kg/cm2
|
1167
|
|
Theoretical
Shot volume, cm3
|
1077
|
|
Max. Shot
Weight, g/Oz
|
1308/46
|
|
Injection
Rate, cm3/sec
|
327
|
|
Temperature
Control, ZONE
|
5
|
|
Material
Hopper Capacity, L
|
25
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
75
|
|
Opening Force,
T
|
11.5
|
|
Mold
dimensions, mm
|
200
|
|
Min Mold
Height, mm
|
270
|
|
Opening
Stroke, mm
|
470
|
|
Max. Open
Daylight, mm
|
150±20
|
|
Ejector Force,
T
|
75
|
|
Ejector stoke,
mm
|
140
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
400
|
|
Pump Motor
Power, kw
|
18.5
|
|
Barrel Heating
Power, kw
|
18
|
|
Total Wattage,
kw
|
36.5
|

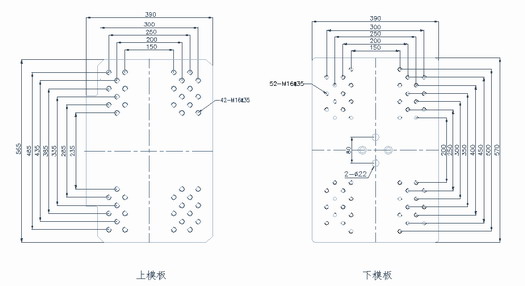

Template
|
