﹡Full automatic manufacturing controlled by computer,
achieve one person manipulate several machines, coordinate with the mould, it

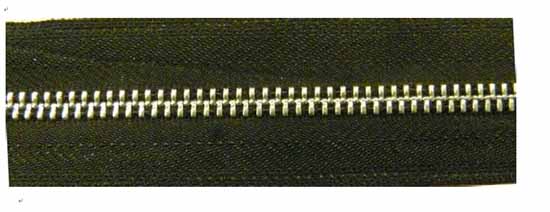

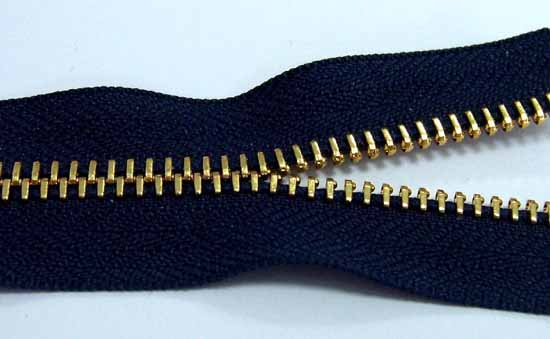

can produce all kinds of specification zipper, 15-18moulds one minute.

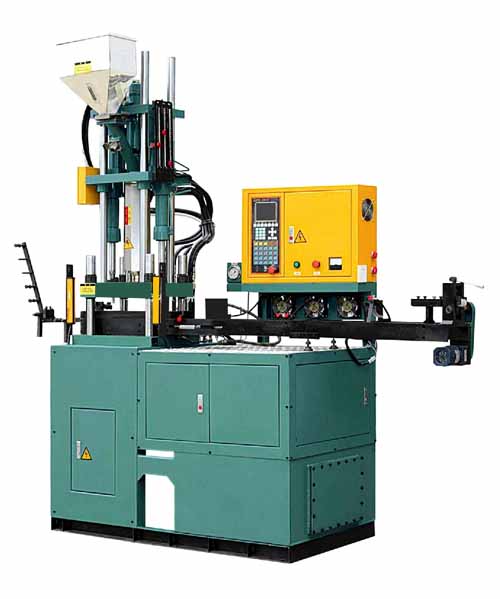

﹡Self-automatic, full-automatic injection molding machine:
Insert, square and block molding in one time, fast, material saving, and
automatic function is optional.
|
Type
|
HDTY-350NL
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
36
|
|
Injection
Pressure, Kg/cm2
|
1313
|
|
Theoretical
Shot volume, cm3
|
122
|
|
Max. Shot
Weight, g/Oz
|
109/3.8
|
|
Injection
Rate, cm3/sec
|
73
|
|
Temperature
Control, ZONE
|
3
|
|
Material
Hopper Capacity, L
|
20
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
35
|
|
Opening Force,
T
|
5.6
|
|
Distance
Between Tie Bare, mm
|
360x230
|
|
Min Mold
Height, mm
|
50
|
|
Opening
Stroke, mm
|
200
|
|
Max. Open
Daylight, mm
|
250
|
|
Ejector Force,
T
|
2.2
|
|
Ejector stoke,
mm
|
50
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
135
|
|
Pump Motor
Power, Kw
|
5.5
|
|
Barrel Heating
Power, Kw
|
5.5
|
 |
