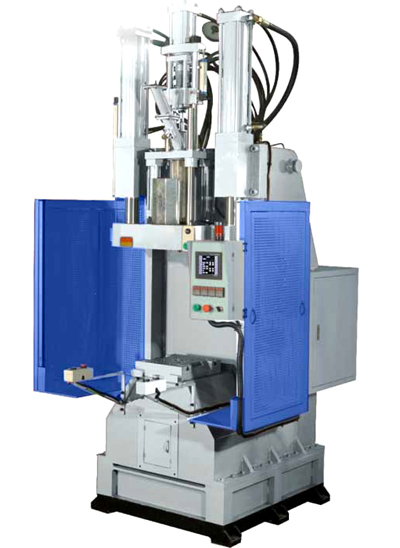

This
is the first set which is adopt Japan Mitisubishi PLC touch LCD vertical
injection molding machine in China, structure is timbales, vertical clamping,
vertical injection, three sides open, large operation space is good for put and

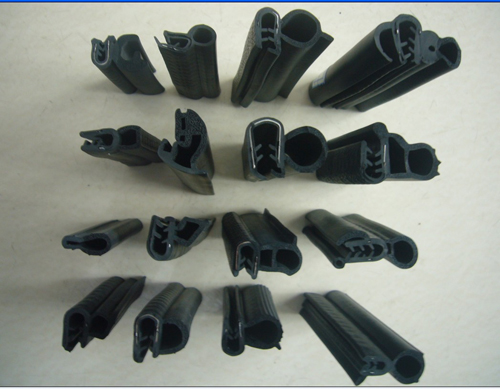

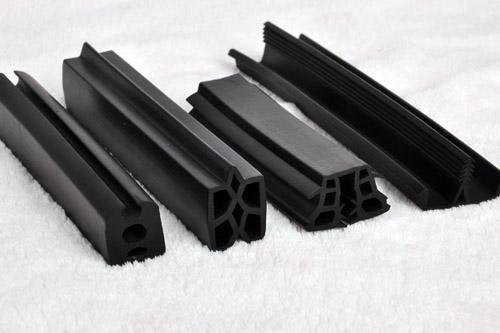

take out the gland strip; proportional pressure, flow-oil way control, shares
the merit of strong mechanical structure, high pressure, fast speed etc.
|
Type
|
HDTC-200
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
28, 32
|
|
Injection
Pressure, Kg/cm2
|
1446, 1107
|
|
Theoretical
Shot volume, cm3
|
65, 84
|
|
Max. Shot
Weight, g/Oz
|
58/2.0,
71.2/2.5
|
|
Injection Rate,
cm3/sec
|
49.6, 64
|
|
Temperature
Control, ZONE
|
3
|
|
Material
Hopper Capacity, L
|
15
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
30
|
|
Opening Force,
T
|
14
|
|
Min Mold
Height, mm
|
310
|
|
Opening
Stroke, mm
|
490
|
|
Max. Open
Daylight, mm
|
280
|
|
Ejector Force,
T
|
2
|
|
Ejector stoke,
mm
|
119
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
130
|
|
Pump Motor
Power, Kw
|
5.5
|
|
Barrel Heating
Power, Kw
|
2.7
|
|
Total Wattage,
Kw
|
8.2
|
|
GENRAL
|
|
|
Machine
Weight, T
|
0.96
|
|
Machine
Dimensions(L×W×H), m
|
1.6x1.1x3.2
|
 |
