The

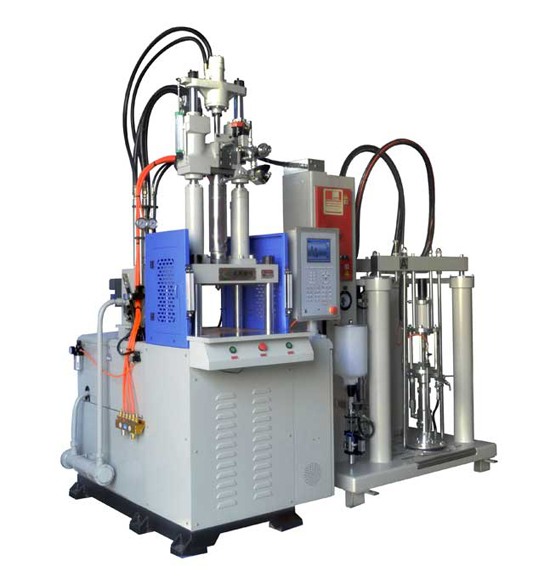

main features of the machine are as follows: Self research and development
(20/200l) LSR feeding machine and the selected 2KM machine which is made in
Germany.
Multi segments precise mould heating temperature control. LSR special use oil
pressure water cooled sealed nozzle, pipe assembly.
Sandwich insulated fiber-board. Which includes insulation board and insulating
fiber-board? This can avoid the problem of use life and stability of the
machine as well as unnecessary energy waste caused by heat transfer of the
mould.
|
Type
|
HDTY550.2R.LSR
|
|
INJECTION UNIT
|
|
|
Screw
Diameter, mm
|
32, 36
|
|
Injection
Pressure, Kg/cm2
|
1662, 1313
|
|
Theoretical
Shot volume, cm3
|
96, 122
|
|
Max. Shot
Weight, g/Oz
|
86/3.0,
109/3.8
|
|
Injection
Rate, cm3/sec
|
58, 73
|
|
CLAMPING UNIT
|
|
|
Clamping
Force, T
|
55
|
|
Opening Force,
T
|
8.3
|
|
Min Mold
Height, mm
|
150
|
|
Opening
Stroke, mm
|
200
|
|
Max. Open
Daylight, mm
|
350
|
|
Ejector Force,
T
|
1.3
|
|
Ejector stoke,
mm
|
65
|
|
POWER UNIT
|
|
|
Max. Hydraulic
Pressure, Kg/cm2
|
140
|
|
Pump Output, L
|
160
|
|
Pump Motor
Power, Kw
|
5.5
|
|
Total Wattage,
Kw
|
5.5
|
|
GENRAL
|
|
|
Machine
Dimensions(L*W*H), m
|
1.7*0.9*3.0
|
|
