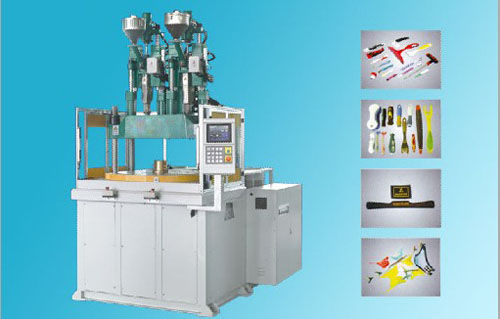

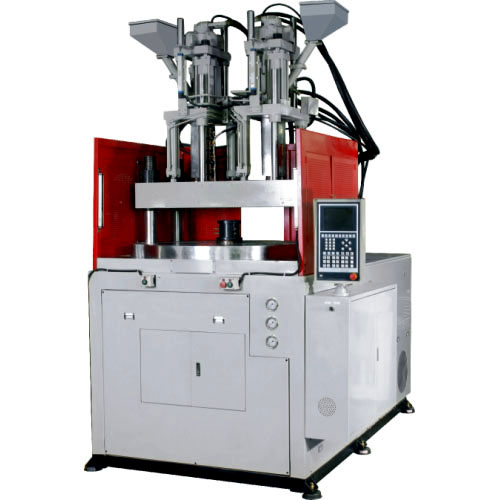

HDTY-2500.3R.2C Two-color Rotary injection molding machine



﹡It can produce complex material products, such as hard and soft compound material, increase close upon and not affect mechanical intensity of the product. It can also produce the product complex with two colors, like:mobile phone, key-press of the computer keyboard, telephone key stoke, cell phone cover, toys, stationery and daily use bi-color products. This kind of machine can reduce the processing greatly, save the production time above 60%, two color molding in one time, reduce the quality problem cause by shrank with the change of temperature. It not only reduce production cost greatly, at the same time increase the quality of the product for customers.





Type

HDTY-2500.3R.2C

INJECTION UNIT

Screw Diameter, mm

60. 65

Injection Pressure, Kg/cm2

1588, 1353

Theoretical Shot volume, cm3

706, 829

Max. Shot Weight, g/Oz

630/22.2, 740/26

Injection Rate, cm3/sec

189, 221

Temperature Control, ZONE

5

CLAMPING UNIT

Clamping Force, T

250

Opening Force, T

20

Min Mold Height, mm

350

Opening Stroke, mm

400

Ejector Force, T

6.5

Ejector stoke, mm

100

POWER UNIT

Max. Hydraulic Pressure, Kg/cm2

140

Pump Output, L

160

Pump Motor Power, Kw

30

GENRAL

Machine Weight, T

11

Machine Dimensions(L×W×H), m

3.3x2.2x4.9

Round set diameter, mm

Ф2000
