Use:
This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. and can cut edge, separate and cut material according to different requirements during production.
Performance and Characteristics:

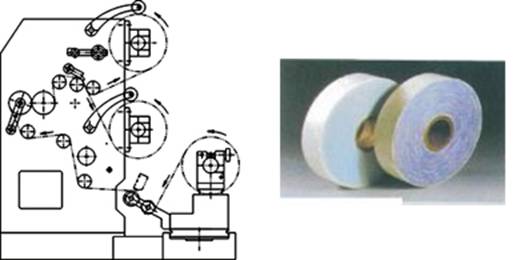

1,This machine is a kind of vertical slitting and rewinding madhine.
2,Independent master control panel,more flexible and even easier operation.
3,Automatic EPC for unwinding,photocell is suitable for tracking the edge and color of transparent material.
4,Equipped with magnetic powder brake for unwinding tension control.
5,Magnetic dutch control for rewinding tension control.
6,It can be equipped with rimcharge conveying or rewinding device(which can be selected in order)
7,Automatic meter counting device.
Main technical parameters:
|
Model |
LFQ-700 |
LFQ-1100 |
LFQ-1300 |
|
Max. Width of Rolled material(mm) |
700 |
1100 |
1300 |
|
MAX. Diameter of Rolled material(mm) |
Φ600 |
Φ600 |
Φ600 |
|
Width of Rolled material(mm) |
30-600 |
30-600 |
30-600 |
|
Slitting and Rewinding Speed(m/min) |
5-160 |
5-160 |
5-160 |
|
Error crrection(mm) |
<±0.5 |
<±0.5 |
<±0.5 |
|
Total Power(kw) |
2.7 |
3.5 |
3.5 |
|
Weight of Machine(kg) |
1200 |
1500 |
1800 |
|
Overall Dimension(mm) |
2000×1110×1400 |
2400×1110×1400 |
2600×1110×1400 | |
