Usage :

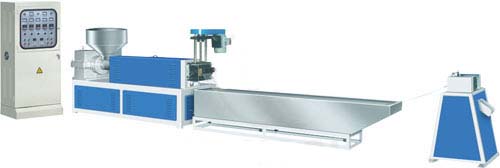

This machine is suitable for regeneration and granulation of waste plastics, such as HDPE, LDPE, and PP, etc. It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, deleting with an extruding machine at the same discharging speed synchronistical. The unit is easy to operate, with a high output, steady performance, and favorable economic benefit.
Main technical parameters:
|
Model |
SJ-90 |
SJ-100 |
SJ-110 |
SJ-120 |
|
Diameter of Screw Stem |
Φ90 |
Φ100 |
Φ110 |
Φ120 |
|
Major Diameter Ratio of Screw Stem L/D |
20:1 -22:1 |
20:1 -22:1 |
20:1 -22:1 |
20:1 -22:1 |
|
Rational Speed of Screw Stem (r/min) |
10-100 |
10-100 |
10-100 |
10-100 |
|
Main Motor Power (kw) |
22 |
30 |
37 |
45 |
|
Output （kg/h） |
68 |
95 |
120 |
135 |
|
Weight （T） |
2 |
2.1 |
2.2 |
2.5 |
|
Cover dimensions (L×W×H) mm |
8000×1200×1800 |
8200×1600×1800 |
8500×1600×1800 |
8800×1600×1800 | |
