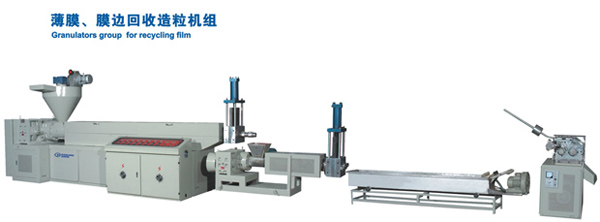

Main features：
The master and secondary machines filter the materials twice to ensure high-quality grains and better exhaust
Main accessories:
Specail reducers for hard surface; 38CrMoALA nitriding barrel screws;intelligent temperature controllers,special barrel covers(the electricity anbe saved,upto 30%).Hydraulic pressure or electric on-line screen-changer,movable stainless-steel water Tank,blower,rotary pellet cutter,it can be installed automatic forced feeding equipment.
Applications:
Mainly applicable for film palletizing plastic.
Main technical parameters：
|
Model |
master |
secondary |
output(kg/h)
Output |
|
Screw diameter(mm) |
L/D ratio |
Power of motor(kw) |
Screw diameter(mm) |
L/D ratio |
Power of motor(kw) |
|
SIQ90-80 |
Ф90 |
1:22/1:18 |
22 |
Ф80 |
1:10/1:8 |
7.5 |
80 |
|
SIQ120-90 |
Ф120 |
1:22/1:18 |
30 |
Ф90 |
1:10/1:8 |
11 |
120 |
|
SIQ140-120 |
Ф140 |
1:22/1:18 |
45 |
Ф120 |
1:10/1:8 |
15 |
160-220 |
|
SIQ160-140 |
Ф160 |
1:22/1:18 |
55 |
Ф140 |
1:10/1:8 |
18.5 |
200-260 | |
