Product information:

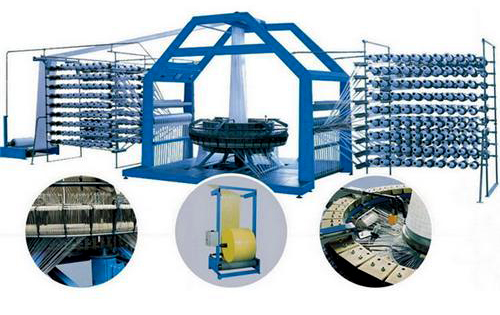

The machine is a kind of equipment to produce circular woven cloth from PP or PE flat yarn. The 6-shuttle circular loom can weave woven bags of all specification.
Our circular loom has a long history and particular technics. After continual innovation, we have acquired many country patent.
The latest new Rolling-Cylinder Style 6-Shuttle Circular Loom has obtained a patent which has its honor to have gained a World Invention Golden Medal certificate of the 51th Eureka.In comparison with others, our circular loom is with wonderful performance such as high speed, low energy consumption, smooth running, low noise, reasonable structure, advanced design, long working life, easy operation and convenient maintenance, high production efficiency, etc. It has high precise warp and weft breakage detecting system and can make smooth looking of the cloth product.
Use :
The machine can weave flat yarn of different quality, even 100 recycled material flat yarn. It is widely use to make plastic woven sack, Chemical bag, Cement bag, Rice bag, Flour bag, Sugar bag, Corn bag, Feedstuff bag, Jumbo bag, FIBC bag, Contain bag, etc
Main technical parameters:
|
Model |
X-YDJ-850/6S |
X-YDJ-1550/6S |
|
Number of shuttles |
6 |
6 |
|
Revolution(r/min) |
120-180 |
90-120 |
|
Weft insertion (p/min) |
600-1080 |
480-720 |
|
Weft density(wefts/inch) |
8-16 |
8-16 |
|
Number of warp(pcs) |
720 |
1280 |
|
Weaving folding width(mm) |
350-850 |
950-1550 |
|
Bobbin |
|
|
|
Inner diameter(mm) |
38 |
38 |
|
Length(mm) |
230 |
230 |
|
Max. diameter of weft package(mm) |
90 |
90 |
|
Max. diameter of warp package(mm) |
100 |
100 |
|
Length of traverse(mm) |
200 |
200 |
|
Surface winder
Corn width(mm) |
950 |
1700 |
|
Max. roll outer diameter(mm) |
1200 |
1000 |
|
Winder motor(kw) |
8 |
15 |
|
Warp infeed motor(kw) |
8×2 |
8×2 |
|
Main motor(kw) |
2.2/3 |
4/5.5 |
|
Installed power(kw) |
2.7/3.5 |
4.5/6 |
|
Over dimensions (L×W×H)mm |
9100×2410×3100 |
13520×3300×4300 |
|
