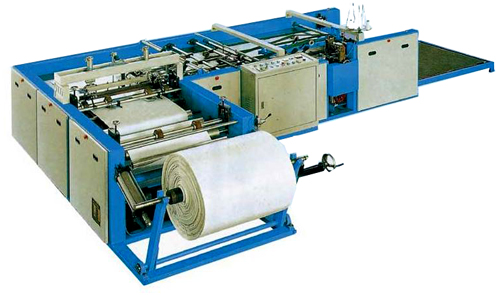

Features:
1.It can automatically accomplish the normal-length thermal cutting as well as the bottom hemming for the woven cloth in roll, which saves labor forces.
2.It adopts the servomotor to drive and the optical code meter to count the length, which precisely controls the length of bags.
3.After the heating cutting, the bags are easy to open, not conglutinated.
4.By pneumatic up coiling, it is easy and convenient to control.
Main technical parameters:
|
Model |
QXF-850 |
|
Max. diameter of unwinding cloth(mm) |
1500 |
|
Width of unwinding cloth(mm) |
300-850 |
|
Cutting Length(mm) |
500-1250 |
|
Cutting length accuracy |
±1.5 |
|
Bottom folding width(mm) |
20-30 |
|
Production capacity(pcs/min) |
20-36 |
|
Sewing unit |
Newlong Japan, DN-2HS |
|
Stitching range(mm) |
5-7 |
|
Main motor(kw) |
3.7 |
|
Power of heating cutting(kw) |
2 |
|
Total power(kw) |
9.5 |
|
Weight (About kg) |
1800 |
|
Overall dimensions (L×W×H) |
5030×3010×1600 |
|
