Performance and Characteristics:

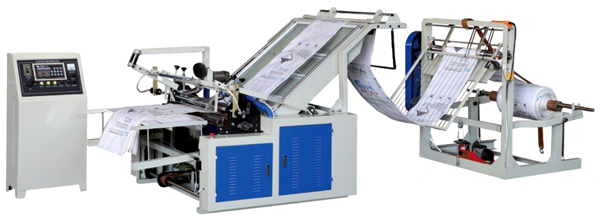

ZW-BZ800 Type Knitting Bag Heat Cutting Machine is collected various functions like auto discharge,feeding,heat cutting,auto counting,the ray see faulty goods, upon find faulty goods will be stop automatically. Its automatic computer cut bag machine. Since succeeded in the trial production and put into market,its held in the greatest welcome by numerous customers. The speed can reach of 80pcs/min,one hour can reach more than 4000pcs. One worker operate two machines. Production benefit is original artificial cutting three-fold. The machine is suitable for all kinds of cement bags, fertilizer bags, feed bags, rice bags and other food bags, etc. with printing or without printing,weight as 50-120g.
Main Technical Parameter:
|
Model Type |
ZWY-BZ800 |
|
Production Speed (pcs/min) |
40-80 |
|
Weight of Bag (g) |
50-120 |
|
Length of Bag (mm) |
300-1200 |
|
Width of Bag(mm) |
200-1000 |
|
Max.sewing thickness(mm) |
14 |
|
Max.sewing speed(r/min) |
1400 |
|
Lengh of thread(mm) |
9-16 |
|
Total Power (kw) |
2 |
|
Machine Weight (kg) |
700 |
|
