Discription:

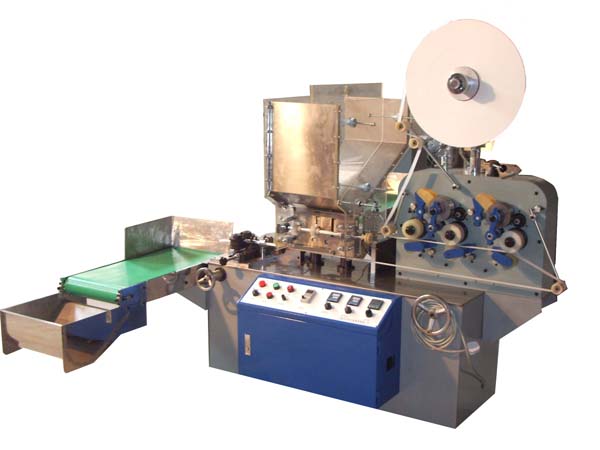

This machine is a kind of equipment used to packing the drinking straw into the bag automatically.The complete machine comprises of driving motor, driving system, paper-roll unwinding device, straw-feeding device, automatic sealing device, conveying device for finished products, etc.. With complete set of introduced Italian technology, the machine is highly automatic, and has high production speed and double-color printing (fine printing) function, which can complete printing, feeding and packaging at one time. The machine is convenient to operate and has reliable quality.
Characteristics:
1.Single-piece packaging. Feeding and packing can be completed at one time.
2.There are non-color, single-color or double-color printings available
3. Automatic product counting, product quantity pre-set. And once the pre-set value is reached, the machine will stop and give an alarm. It is convenient for secondary packing.
4.The packing speed is adjustable.
Main technical parameters：
|
Model |
DY38 |
|
Driving motor(kw) |
0.75（Control by frequency converter) |
|
Production capacity(pcs/min) |
500~600（straight straws) |
|
400~500 (flexible straws) |
|
Packing method |
three sides sealing |
|
Packing material |
Paper/film |
|
Regulars of straw (mm) |
Diameter Φ3～Φ7 |
|
Length 150～240 |
|
Other specifications are customizable |
|
Machine size(L×W×H)mm |
1500 × 800×1300 |
|
Machine weight(kg) |
400 |
|
