Introduction:
|
Process |
Representative materials |
Operating capability Kg/h(reference values) |
|
Mixing nature-changing |
PE, PP, PS+SBS, PA+EPDM, PP+NBR, EVA +Silicon rubber, etc. |
700-1100 |
|
PE, PA, PC, CPE+ABS(alloy), ABS+TPU, PBT+PET, PP +PE , etc. |
600-1000 |
|
Filling nature-changing |
PE, PP, EVA, ect. + Calcium carbonate, talcum powder, titanic powder, ABS, PC, PS, etc. +aluminum hydroxide, magnesium hydroxide, antimony oxide. |
700-1000 |
|
PP, PA, ABS +ferrous powder, sulfurous powder, ceramic powder |
900-1200 |
|
Functional machine pellets |
PP, PA, ABS, PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets |
800-1100 |
|
PE, PP, PS, etc+ starch: de-composing machine pellets |
600-800 |
|
PE +fog-preventing dipper, stabilizer: dual-prevention machine pellets |
600-750 |
|
PE, EVA=ABS etc +carbon black: black machine pellets |
400-700 |
|
Colored machine pellets |
PE, PP, ABS, AS, PA, EVA, PET +pigment and auxiliary |
500-750 |
|
Intensified glass fibbers and carbon fibers |
PP, PBT, ABS, AS, PA, PC, POM, PPS, PET, etc.+ long fires, small fibers, carbon fibers, crystals and so on, |
550-900 |
|
Various cables |
HDPE, LDPE, LLDPE, MDPE, EVA, PVC, PP, etc. insulating cables, coatings, PE peroxide, silicon alkyl crossing cables, radicalizations crossing cables |
500-900 |
|
Special materials |
EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material |
450-1100 |
|
Reaction extruding |
Polyamide condensate, polyamide melting polymerization, polyamide polyethylene-adding?polycarbonate condensate, etc. |
450-700 |
|
Exhausting and volatilization |
Polystyrene oxide, high-absorbing resin, chlorine sulfurous polyethylene |
200-500 |
|
Powder paint |
Polyester, ring oxide, polyurethane, acryl ate |
1200-1400 |
I. SHJ95 technical parameters:
Two-screw stem length-diameter ratio 40:1
Two-screw stem motor power 132KW DC
II. Machine configuration:

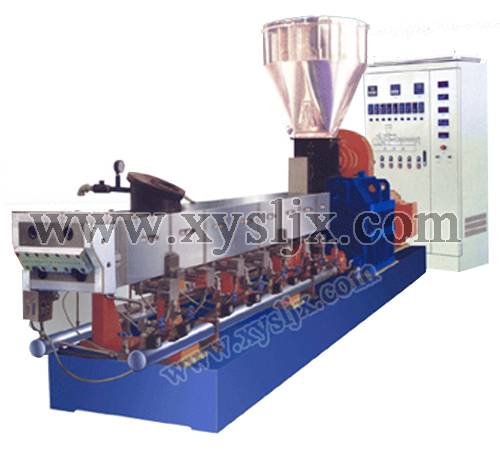

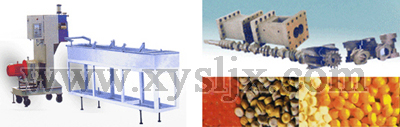

SHJ 95 twin-screw extruder
1.Gearbox
1) Reduction factor: 3.75:1
2) Output shaft rotation speed?MAX400RPM
3) Input shaft rotation speed: MAX1500RPM
4) The compact host machine features integrated speed reduction and torque transfer with a design of parallel three axles. SKF bearings are used in the reducer, torque transfer device and as the radial bearing in the output shaft.
2. Lubrication oil cooling system
1) Motor of oil pump 1.1KW
2) Lubrication oil model: Hai Brand 6402 made in Shanghai, mediums load gear oil, model: 85W/90GL - 4.
3) Brand name: xi' an Oil Pump Plant
4) Condenser model:SL - 415
5) Lube oil pump model:CB – B16
3. Motor of host machine
1) Motor of host machine: 132KW?DC motor)
2) Motor speed ( MAX):1500RPM
4. Screw stem
1) Screw stem diameter:?91mm
2) L/D = 40:1
3) Screw stem with modular structure
4) The screw core shaft is made of 40CrNiMoA, and the screw thread components connect with the core shaft in an involute curve, which features high intensity, large load, and easy disassembly and assembly.
5) The screw components are made of high quality high-speed tool steel, W6MO5Cr4V2, that receives heat treatment with vacuum hardening at high temperature.
6) Whole hardness: HRC62-64
5.Charging barrel
1) The barrel body is made of #45 steel, and the "8" shape hole is lined with wearing proof alloy a-101?Fe - Cr - Ni –B +Carbide?, hardness: HRC60 - 64, barrel length: L = 360mm/section.
2) The first cylinder is used for feeding materials, the 10th cylinder for extrusion, the 9th cylinder for vacuum and the other cylinders are of closed mouth type.
3) Soft water circulation system
3.1 The barrel uses soft water cooling.
3.2 The soft water tank separates with the body, which facilitates cleaning and service.
3.3 Electromagnetic valveCEME9313 imported from Italy.
3.4 Water pipe is copper pipes coated with chrome.
3.5 cooling method: water cooling
3.6 cooling pump:0.75KW
3.7 water tank capacity: 180L
6.heating system
Temperature control section charging barrel section type of heating piece
Section 1 material feeding
Zone 1 section 2 cast copper
Zone 2 section 3 cast copper
Zone 3 section 4 cast aluminum
Zone 4 section 5 cast aluminum
Zone 5 section 6 cast aluminum
Zone 6 section 7 cast aluminum
Zone 7 section 8 cast aluminum
Zone 8 section 9 cast aluminum
Zone 9 section 10 cast aluminum
Test the fusing temperature with the fusing temperature thermal couple, and test the materials pressure with the pressure sensor.
7. Electrical control system
1) 3X380V?AC 50Hz
2) Main electric control components are Siemens products.
3) Control buttons are Schroder products from France.
4) Twin-screw stem motor is a DC motor with a power of 132KW?and the speed regulator in the twin-screw stem host machine is the British EUROTHERM.
5) The speed regulator in the feeding machine is the Japanese FUJI variable-frequency regulator.
6) The temperature control meter is a Japanese RKC product with intelligent double channels and a temperature control in each zone.
7) Pressure meter range: 0- 25Mpa.
8) The electromagnetic valve is imported from Italy CEME9313.
9) Heating is controlled by the temperature control meter via a solid-state relay with high-temperature wire.
10) The electric control cabinet controls the temperature control system, the driving system and the interlock control system.
8. Interlock control system
1) Only after the oil lubrication system interlocks with the host machine, i.e., the oil pump starts up, can you start up the host machine.
2) Only after the feeding system interlocks with the host machine, i.e., the host machine starts up, can you start up the feeding machine.
3) When the pressure system interlocks with the host machine, i.e., reaches overpressure, both the host machine and feeding machine should stop operation.
4) When the electric current interlocks with the host machine, i.e., reaches overcurrent, both the host machine and feeding machine should stop operation. |
