Applications:

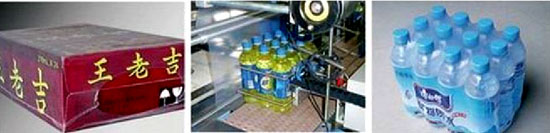

Big infusion bottles tins without trays It can be conntected and work with auto labelling machine.
Main technical parameters:
|
Model |
CMX-750A |
|
Sealing type |
sleeve sealing |
|
Power supply |
380V/50-60Hz/3phase |
|
Max product size(mm) |
400×200×200 |
|
Packing capacity(pieces/min) |
20 |
|
Film type |
polyethylene (PE) film |
|
Max film size(mm) |
500×280 |
|
Rated power consumption(kw) |
12 |
|
Infeed conveyor length(mm) |
1800 |
|
Tunnel oven size |
1200×530×250 |
|
conveyor speed(m/min) |
variable, 40 |
|
conveyor |
steel mesh belt conveyor |
|
Working table height(mm) |
850-950 |
|
Air pressure (Mpa) |
≤0.5 |
|
PLC |
SIEMENS S7 |
|
Sealing system |
Permanently tempreture and heated system with easy-exchangeable sealing blade without odorous |
|
Operating interface |
Eview displayer |
|
Machine material |
stainless steel |
|
